Hunslet 0-4-0 DM Locomotive No.13 �Tiny Tim�

---

Locomotive Details:-

This diesel mechanical locomotive of the �Tiny Tim� class was built to replace pit ponies in collieries. It was constructed in 1958, by the Hunslet Engine Co., Leeds, as works No. 5222. This class of locomotive was never successful in the United Kingdom, but many were exported. This is the only original locomotive of three known survivors in the U.K.. It has been on indefinite loan from the Ayle Colliery Company, Alston, since 1989.

The locomotive is fitted with a 15 h.p., 2-cylinder Enfield air-cooled diesel engine, with Hunslet clutch, driving a single speed gearbox. The final drive is by coupling rods, giving a maximum speed of 3 mph and tractive effort of 955 lbs (433 kg).

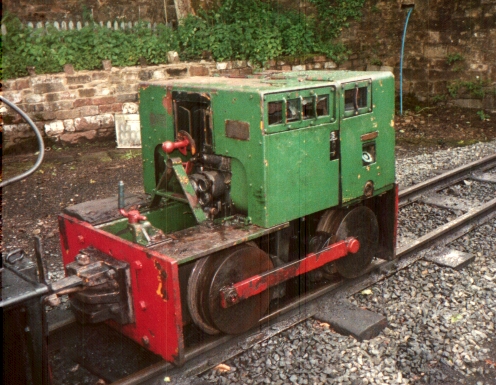

Photo: Hunslet 0-4-0 �Tiny Tim� at Alston Station in 1988.

---

Dimensions and livery:-

Original dimensions:-
Weight = 2 tons 5 cwt. Length = 6 ft 0 in. (1,829 mm). Width = 3 ft 0 in. (914 mm). Overall height = 3 ft 6 in. (1,067 mm).
Wheel diameter = 1 ft 3� in. (394 mm). Wheelbase = 2 ft 8 in. (813 mm).

Livery:-

Green.

---
